Price 2200 आईएनआर/ Number

मूल्य/उद्धरण प्राप्त करें

Specification

स्ट्रेंथ
High Mechanical Strength upto 600 N/mm²

पवित्रता
Copper Purity above 99%

लाइफ स्पैन
Over 25 Years in Normal Soil Conditions

तांबे की मोटाई
100–250 microns

व्यास
16mm, 17.2mm, 25mm, 32mm (as required)

टेन्साइल स्ट्रेंथ
≥600 N/mm²

प्रॉडक्ट टाइप
Chemical Earthing Installation सेवाएं

मटेरियल

एप्लीकेशन
Electrical Earthing for Protection of Equipment and Personnel

फंक्शन
Provides low resistance earthing for electrical safety

शेप
Rod/Cylindrical

सतह का उपचार
Copper Bonded / Galvanized

सहनशीलता
±5 mm

आयाम (एल* डब्ल्यू* एच)
Standard sizes (as per requirement), e.g., 2m x 60mm

वज़न
Approx. 7–15 kg (depends on size)

रंग
Copper Brown / Metallic Grey

Installation Method
Direct Driven or Augered Hole with Backfill Compound

Moisture Retention
Excellent due to use of Backfill Compound

Corrosion Resistance
High; Suitable for Aggressive Soil Conditions

Operating Temperature Range
-10°C to +60°C

Resistivity Achieved
Less than 1 Ohm

Packing Type
Standard Packing (Carton/Bag)

Service Type
On-site Installation with Testing

Backfill Material
Carbon Based Conductive Compound

Applicable Standards
IS 3043, IEEE 80, IEC 62561-2

Minimum Order Quantity
As per requirement (generally 1 set or more)

Trade Information

Minimum Order Quantity
50 Number

आपूर्ति की क्षमता
प्रति दिन

डिलीवरी का समय
दिन

नमूना नीति

मुख्य घरेलू बाज़ार

About

Size of Conductor	50*6mm
Length of Rod	1-2-3 meters
Material	Galvanised iron
Diameter	76-50 mm
Surface Treatment	Galvanized

allow the rod to be installed at least 12 feet into the ground. Usually, a hole of 120 to 150mm diameter and 3 mtr depth is needed for driving the ground rod into the soil. This can vary depending on the dimension of the ground rod.

Superior Performance in Harsh Soil Conditions

Designed for aggressive soils, our chemical earthing systems utilize a special carbon-based backfill compound that retains moisture and resists corrosion remarkably well. This ensures high conductivity and low resistance grounding, critical for safeguarding electrical installations and enhancing overall system safety.

Compliance with International Standards

We strictly adhere to IS 3043, IEEE 80, and IEC 62561-2 standards, ensuring every installation meets rigorous quality and safety requirements. Our precision-engineered rods and compounds guarantee consistent performance and reliability, backed by comprehensive testing during installation.

FAQs of chemical earthing installation services:

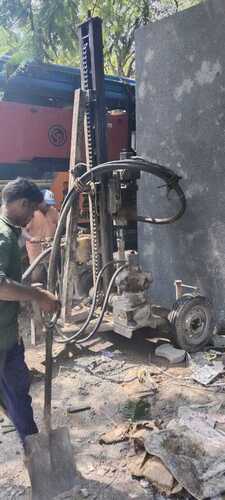

Q: How is chemical earthing installed at my site?

A: Chemical earthing is installed either by directly driving the rod into the ground or by augering a hole and inserting the rod, which is then surrounded by a carbon-based conductive backfill compound. This process enhances moisture retention and ensures low resistance even in challenging soil types.

Q: What types of materials are used in chemical earthing rods?

A: Our earthing rods are made from copper bonded steel or galvanized iron (GI), featuring a high-purity copper layer ranging from 100 to 250 microns. The rods have high mechanical strength and are paired with a specially formulated carbon-based backfill compound for optimal electrical conductivity.

Q: Where are these chemical earthing solutions applicable?

A: Chemical earthing is suitable for electrical installations requiring reliable protection for equipment and personnel, especially in industrial, commercial, and residential environments with aggressive or high-resistivity soils across India.

Q: What benefits does chemical earthing offer over conventional methods?

A: Chemical earthing achieves lower resistivity (less than 1 Ohm), superior moisture retention, and high corrosion resistance, resulting in enhanced safety, longer lifespan (over 25 years), and reduced maintenance compared to traditional earthing systems.

Q: When should I test the chemical earthing installation?

A: Testing is performed on-site immediately after installation to confirm proper operation and adherence to standards. Periodic testing is recommended during the life span of the earthing system to ensure continued effectiveness.

Q: What is the process for ordering chemical earthing installation services?

A: You can order a chemical earthing installation according to your requirements, with a minimum quantity of one set or more. We offer customized dimensions and configurations, delivered with standard carton/bag packing and comprehensive onsite service.

Q: How does the backfill compound improve the earthing systems performance?

A: The carbon-based backfill compound retains moisture and maintains conductivity around the electrode, even in dry or aggressive soil, ensuring stable resistance levels and long-term electrical safety.
